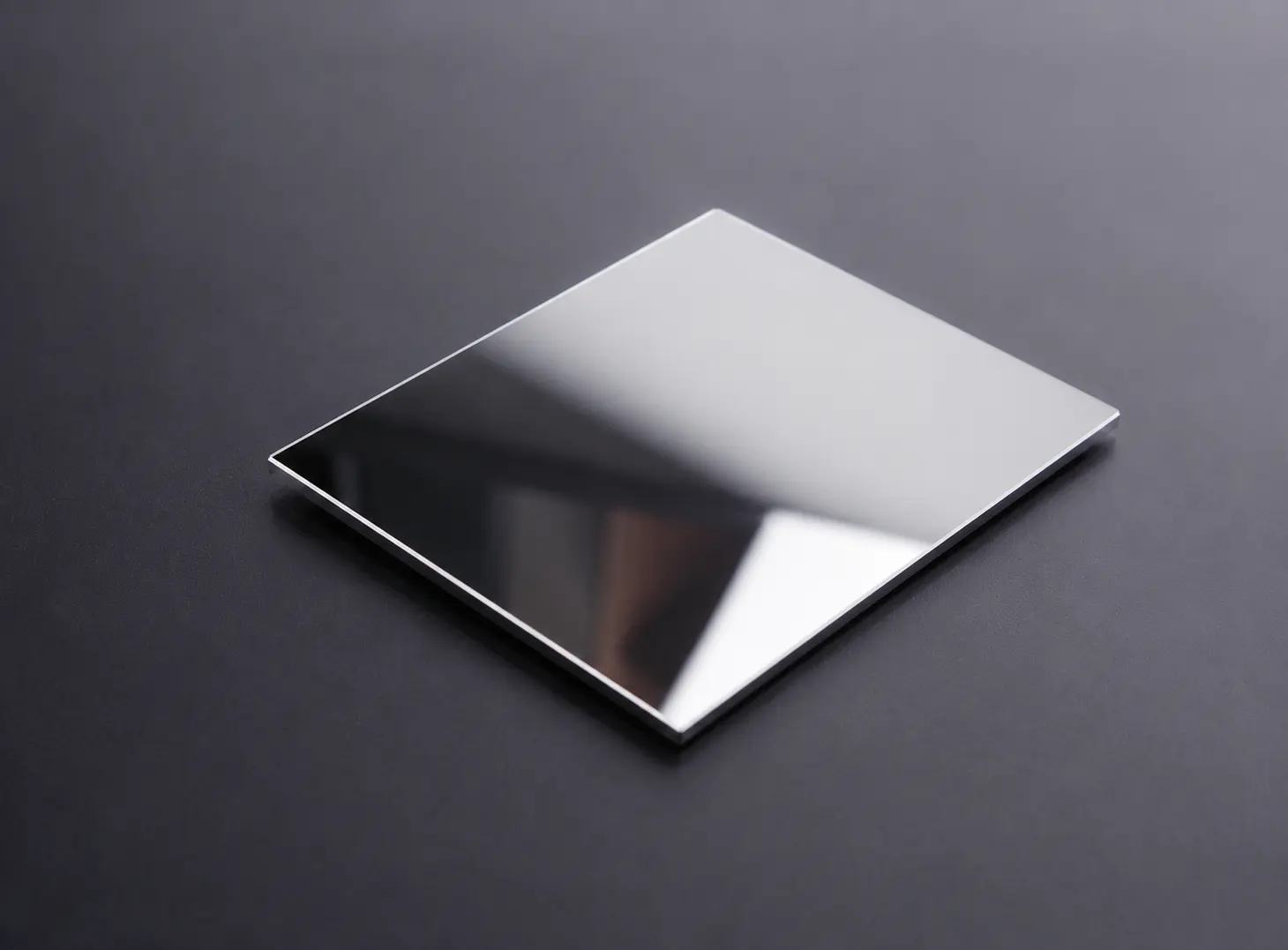

Request a quote Flat Mirrors
Precision flat mirrors manufactured with custom reflective coatings.
Typical Specifications
| Material | Sapphire / N-BK7 / H-K9L / Fused Silica |
|---|---|
| Design Wavelength | Customer Specified |
| Dimensional Tolerance | +0.0 / −0.1 mm |
| Thickness Tolerance | ±0.2 mm |
| Surface Flatness | λ/2 @ 632.8 nm |
| Surface Quality | 40-20 Scratch-Dig |
| Clear Aperture | >90% |
| Bevel | <0.2 mm × 45° |
| Coating | Custom Coatings Available |
Other specifications, materials, and coatings are available upon request.
